そのうえで、探査機の打ち上げ前には「C-SMP」(Corer Sampler, 円筒をフォボス表面に突き刺してサンプルを採取する機構)と呼ばれるサンプリング装置、そして「SSTM(Sample Storage and Transfer Mechanism、サンプル保管・輸送メカニズム)」とがもう一度分解されて、イソプロピルアルコール、ジクロロメタン/メタノール混合液、超純水による超音波洗浄のフルコース洗浄精密洗浄が実施されます。サンプリング装置は再組み立て後に射場である種子島宇宙センターで探査機本体と合流し、ここでも引き続き汚染物質の侵入を防ぐために窒素でパージされます。MMXにはNASAが開発した「P-SMP」(Pneumatic Sampler、ニューマティック採取機構と呼ばれ圧縮ガスをフォボス表面に吹き付けてサンプルを採取する機構)も搭載していて、この機器の洗浄はNASAが行うことになっています。「C-SMP」も「P-SMP」も、継続して窒素でパージされます。

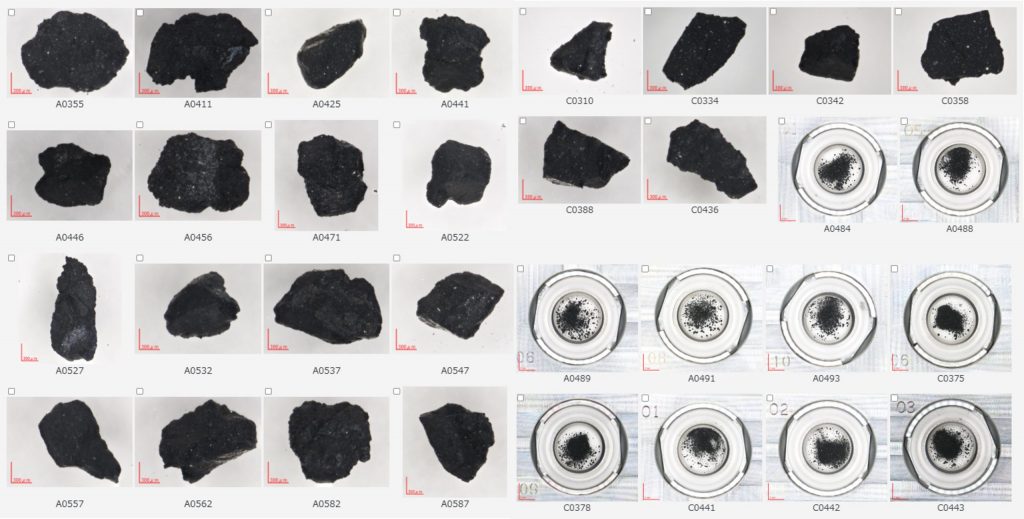

小惑星リュウグウのサンプル粒子は現在、日本のほかに、英国の科学博物館(Science Museum)、フランスのシテ・ド・レスパス(Cité de l’espace、宇宙開発を主題にしたテーマパーク)で一般向けに展示されています。展示用の粒子も、科学分析用のサンプルと同様にJAXA地球外試料キュレーションセンターのクリーンルーム内のクリーンチャンバ内、FFTC容器に密封されたものです。
学術論文(英語): “A curation for uncontaminated Hayabusa2-returned samples in the extraterrestrial curation center of JAXA: from the beginning to present day” (Earth, Planets and Space)
テクニカルレポート(英語): “Contamination analyses of clean rooms and clean chambers at the Extraterrestrial Sample Curation Center of JAXA in 2021 and 2022” (JAXA Repository)
Jim served as a safety diver at Marshall Space Flight Center. (NASA)
“How I got involved in the repair of Hubble is that I’m a scuba diver!”
While studying at the University of Iowa in the late 1970s, Jim Green joined the university scuba club. It was an activity that would ultimately lead to Green being involved in several of the most famous space repairs in history.
In 1980, Green began his first position at NASA at the Marshall Space Flight Center. A short while later, Green was visited by his parents who had asked for a tour of the facilities. The seemingly innocent request sent Green into a fluster.
“A tour! I know what happens in my building, but there’s fifty buildings here. I don’t know what they do! I have no idea what the Marshall Space Flight Center does, what are you talking about?!” laughs Green. “I can show you my pencil and… my computer terminal!”
A clever solution was to assign the task to a more experienced party. Just outside the Marshall Space Flight Center was the US Space and Rocket Center that took visitors on tours of the neighbouring NASA facility. When Green’s parents arrived, the family boarded a bus to take the official tour of Green’s institute.
The tour bus wove through the Marshall Space Flight Center and eventually reached a building that contained a huge tank of water stretching 23m across down to 12m in depth. This was a neutral buoyancy pool where astronauts could practice working in space wearing a full spacesuit while being suspended in the water.
“I look into a porthole and I go, I’ve got to get in this tank!” recalls Green. “How do I get in this tank and dive?”
To support the astronauts during the training exercises, safety and utility divers were needed in the water. And as it happened, many of the current team of divers were retiring that year. With his extensive scuba diving experience in the difficult visibility conditions of the quarries, lakes and rivers of Iowa, Green’s application to join the team was accepted. A few times a week he would then receive a phone call at this desk to dive the next day.
“They’d call me up and say, can you dive tomorrow? I’d look at my schedule, and I’d say great,” remembers Green. “And I’d have a morning dive or an afternoon dive that would last anywhere from 80 minutes to 120 minutes.”
Once in the tank, Green’s job as a safety diver was to weight the astronaut to balance the buoyancy of their spacesuit until they were perfectly suspended in the water. Green would then stay by the astronaut through the exercise to ensure that they were never put at risk.
One such dive was for the spacewalk in 1993 that would fix the flaw in the Hubble Space Telescope’s primary mirror. Yet, the mission Green most clearly remembers was the repair of the Solar Maximum Mission (SMM).
Solar Maximum had launched in February 1980, but a failure in the attitude control late that year sent the satellite into a spin. In 1984, a Shuttle crew intercepted the spacecraft and repaired the fault.
“The repair of SMM was unbelievable!” says Green. “They built the Manned Manoeuvring Unit—the unit that fits on your back, and you literally are the spacecraft—they built that to repair SMM!”
The Manned Manoeuvring Unity (MMU) is the astronaut propulsion pack that is seen in the movie “Gravity” being used by George Clooney’s character. It was the job of NASA astronaut George “Pinky” Nelson to use the MMU to get Solar Maximum safely into the Shuttle’s payload bay where it could be repaired.
“The spacecraft has these solar panels, and it’s spinning,” describes Green. “So Pinky Nelson had to corkscrew his way in, all the way to the satellite itself, and connect. Then he had to use his thrusters to slow the spin down, and pull the spacecraft over to the Shuttle and stick it in the bay. We practiced that in the tank!”
Despite a series of challenges during the mission, Solar Maximum was a successfully repaired. The mission ran for another five years, until the end of 1989.
Green would ultimately perform around 150 dives over five years to support astronauts in the neutral buoyancy tank.
“I had a blast!” he recalls. “We did all kinds of spectacular stuff like this.”
Discovering solar superstorms
The Intrepid being inflated from the nearby hydrogen gas generators at the Lowe Balloon Camp on Dr. Gaines’s farm (Library of Congress)
“Everyone has hobbies and one of my hobbies is Civil War Balloons.”
During the American Civil War, balloons crewed by aeronauts were used for reconnaissance. Soaring a thousand feet above the ground, the balloons provided an elevated look-out from which the location of the opposition’s troops and artillery could be seen.
Fascinated by the aeronautical technology being developed in that era, Green was searching for references to the balloons in the newspaper archives held at the US Library of Congress. It was there he found that balloons were not the only notable phenomena in the sky in 1859.
“The late August, early September papers were filled with aurora stories, no matter what newspaper you read,” exclaims Green.
The papers referenced an event dubbed “The Great Aurora of 1859” and Green swiftly realised this must be far more wide-spread then any recent phenomena.
“The news at the time was very local,” he explains. “So if a newspaper in New Orleans mentions an aurora flying overhead, it’s local. They’re not talking about a place in Canada.”
Green’s findings pointed to the occurrence of a solar superstorm in which violent eruptions on the Sun’s surface had engulfed our planet in a cloud of high energy plasma, and generated a huge aurora that stretched from the poles and down towards the equator.
It has previously been well known that the Sun releases a continuous stream of high energy particles into space, known as the solar wind. Upon reaching the Earth, these particles are caught in our planet’s magnetic field and spiral down towards the poles. As they hit the atmosphere, light is emitted in characteristic colours of greens and reds to form the northern and southern lights, also known as the aurora borealis and australis. But views of the aurora typically require you to be far north or far south, with few opportunities for sightings in the US outside Alaska.
Solar storms where clouds of plasma explode from the Sun had also regularly been recorded, but even these had never produced an aurora as globally visible as that of the Great Aurora of 1859. Overall, our nearest star was mistakenly believed to be quite quiescent.
The publication of Green’s findings in the US records triggered a search by scientists of global historical archives. Sightings of an aurora far from the north and south poles were discovered in multiple reports, dating back to even to Assyrian and Babylonian tablets in 500 and 600 BC.
“One of the telltale signs is a very low latitude red aurora. That’s what happens during superstorms,” describes Green. “And there were these comments of people on the ground looking up, seeing a red aurora, and that ends up being written about.”
But superstorms are not merely a pretty phenomenon. As the charged particles from the solar storm spread out across the sky to form the Great Aurora of 1859, they generated electric currents which disrupted telegraph stations. If such a storm were to occur today, the damage would be much more severe as our technology is now heavily reliant on far more vulnerable communication satellites.
“Space weather then takes on a new dimension,” explains Green. “It can become a threat to our technology.”
Recognition of the dangers of solar storms has led to improvements in satellite design, and space weather is now monitored to provide warning for big events. However, a large superstorm would certainly cause significant damage both in space and to ground equipment such as the power grids.
“In the 1980s this was nowhere on the scene,” notes Green. “We now recognise that the Sun can really put it out!”
The DART impact was an historical moment, which was the outcome of 20 years of efforts for some of us, starting in Europe with a concept called Don Quijotte, which eventually led to the birth of DART and Hera. So, for the few of us who were at the origin of this amazing adventure, both on US and European sides, it was a very emotional moment.
In fact, what I appreciated the most is that the public could discover with us what Didymos and Dimorphos look like. It’s the first time, I think, that both the experts and the public had the same initial level of ignorance. Except for its size, we had no other information about Dimorphos. Would it be spherical or very elongated, would its surface be bare rock or full of boulders? This is what we waited for so long to discover. When we thought about Didymos as a target in 2011, we only had a shape model for the primary, thanks to radar observations, but nothing about Dimorphos except its size. So for 11 years, we just had a mathematical model of the binary asteroid, relying on pure assumptions. I cannot put in words the feeling when we go from a mathematical model, which we worked with for so long, to real images! This is amazing and it is even more so when the reality is very different from the expectations!!!
The first surprise was the shape of the primary, which is not the perfect spinning top shape that we expected!!! We were just … Whoa! Then, in the room with the team, we were all discussing what it meant, waiting to start seeing Dimorphos. We had to wait the last minutes before impact to see something. Then, its ellipsoidal shape became visible, and then rapidly, its surface full of boulders and then the impact. It was crazy, it was like discovering a new world we never saw before. I screamed like I never had, because this is the moment that was a dream 20 years ago, turned into a reality. At the end of it, a few of us just cried.
These images showed again what past missions like Hayabusa2 and OSIRIS-REx revealed, which is that asteroids are not boring rocks in space. They are real and very complex small geological worlds! On a single image, like the one before impact, we see many boulders with different morphologies, and we can spend hours studying them (we actually do so)! This is fascinating and tells us something about how they form and the processes acting in our Solar System during its whole history.
Then came the observations by LICIACube and from the ground. And then, another whoa!!! So much ejecta! We made a mess! I was even fearing that we destroyed Dimorphos, and fortunately this is not the case! But although we knew we could be surprised by the outcome, this was a confirmation that surprises wait for us. The increase of brightness is spectacular, the fact that JWST [James Webb Space Telescope] and HST [Hubble Space Telescope] could also observe it simultaneously is another historical moment as this is the first time both telescopes point to the same object at the same time. So, we have many good reasons to jump on our chairs, as scientists, since what we observe is clearly much more exciting than what could have happened, although it is still too early to really know what it means in terms of the deflection.
This is therefore a very exciting moment. DART is a huge success. It demonstrated that we are able to impact a very small body located at 11 millions km from us by knowing only its size. Now, we have to see in terms of deflection. The DART team is currently doing huge efforts to extract from the data the orbital change, the ejecta properties and all information that can allow us to understand what happened. However, what we see makes us even more motivated (although we already were at 100%) to develop and launch Hera in 2024, because despite the great effort of the DART team, we will be left with many unknowns. In particular, what is the final state of Dimorphos? Did we leave a crater, did we reshape it entirely? What is its internal structure? What is its mass, which allows measuring the momentum transferred by the impact and which is the quantity we need to measure to quantify and validate the deflection? Hera will give us this crucial information.
DART was thus a huge success. It provides the initial conditions of the impact, including the spectacular images of the impact site before impact, LICIACube provides crucial information on the early ejecta from the impact, ground based observations give us the orbital period change of Dimorphos, and Hera will provide the final outcome in great details as well as the physical and compositional properties of the asteroid. With DART, LICIACube and Hera, which constitute the AIDA International Cooperation, we will have a fully documented deflection test, which is needed for impact models to be fully validated at the asteroid scale. This is international cooperation at its best!!
Kate Kitagawa
Planetary defence is a great example of international collaborations where scientists and engineers tackle the global issue together. JAXA academy is all about encouraging people (mostly students) to look at global issues like this and climate change — we try to give them the topics that concern us all.
Considering the date of the DART experiment, it made sense to hold a webinar and listen to the specialists’ motivation in early September. In that way, we were well prepared to see the historic event! The DART’s take on science – their wish to purse the experiments which could be useful for all humans – was striking to me. And of course, their efforts are worth spreading!
From a more educational standpoint, I would like to add that planetary defence shows us a unique ‘perspective’. In short, it makes people realise where we live — we of course live on Earth, but the Earth is a part of the Universe where billions of meteorites and other things are constantly flying and passing. Imagining the scale of space and learning how it works, we gain a new and strong sense of belonging to space. So, it was my hope for students to see/feel/understand that we all live in such a wide Universe!
